Roadsky Highway Guardrail Repairing Machine

Item Code: Features:
  • Description

Guardrail repairing machine is mainly used to repair the distorted highway steel guardrail beam caused by crashing and collisions, through the rolling shaping, multi-roll leveling, it can effectively eliminate the bending, distortion and other deformation, so as to restore the twisted beams to the original shapes and performance for reuse.


Power Roll diameter Speed range Correction speed Roll number Boundary dimension Roller Clearance Speed ratio Weight
22-30kw Ø80mm 10-1250r/min 3-5min/piece 14rolls, up and down 2 rolls 9*3.2*1.12m 3-5mm 48:57 6200kg


[gallery columns="2" link="none" size="full" ids="135,134"]

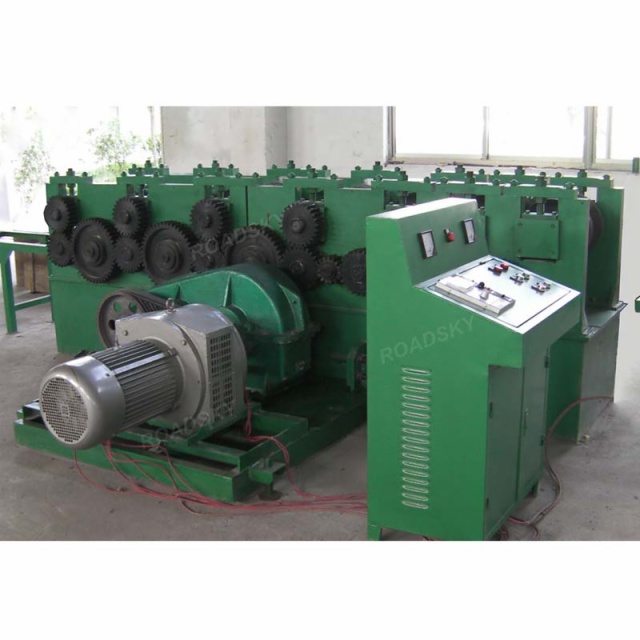

Electric motor is the device that generates robust powers for the running of guardrail repair machine. The motor drives the rotation of gears which is connected to repairing devices.The nominal voltage of the electric machine is 380 V.

Control panel is used to control the rotation speed and direction through electric motor.

[gallery columns="2" link="none" size="full" ids="665,136"]

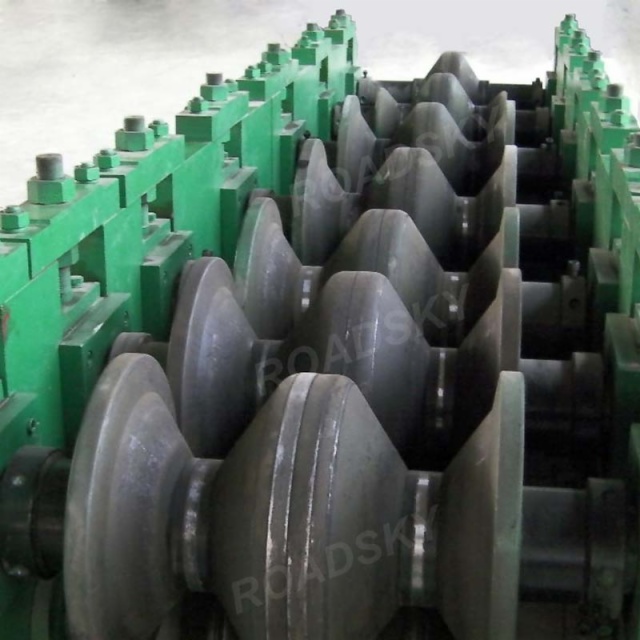

Repairing device is the main functional part of the repair machine which carries out the key work of repair machine by repairing different types of damaged guardrail beams.

Guide rail is intended to support and lead the track movement of guardrail beams that need be repaired.
