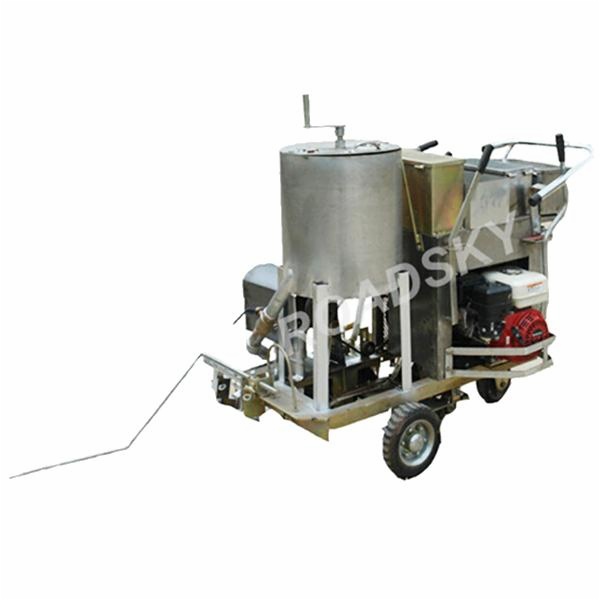

Roadsky RS-14 Series Screeding Type Two Component Road Marking Machine RS-14

Item Code:RS-14 Features:
  • Description

Two-component Screed Road Marking Machine is a new road marking machine with good performance and long service life, equipped with two-component paint.


1. Adopts imported Ultra-quiet infinite hydraulic driving system, can move forward, backward, clutch, stop operating freely.

2. Marking Thickness: 1.2-2.5 mm adjustable

3. Glass beads adopt quantitative formula, without affecting by the marking speed.

4. Solidifying agent and paint are controlled by valves, easy to adjust according to construction requirements.

5. Mixing system adopts mechanical transmission of electromagnetic clutch.


Model RS14
Engine 5.5 HP Honda Engine
Driving System Ultra-quiet hydraulic infinite driving system (HTS)
Climbing Ability ≤18°
Paint Tank Capacity 100 kg
Glass Beads Bin 15 kg
Solidifying Agent Tank
15 kg
Marking Device Manual Screed Dies
Standard Dies 150/200 mm
Optional Dies 300/400/450 mm
L*W*H 1300*900*1200 mm
Weight 158 kg

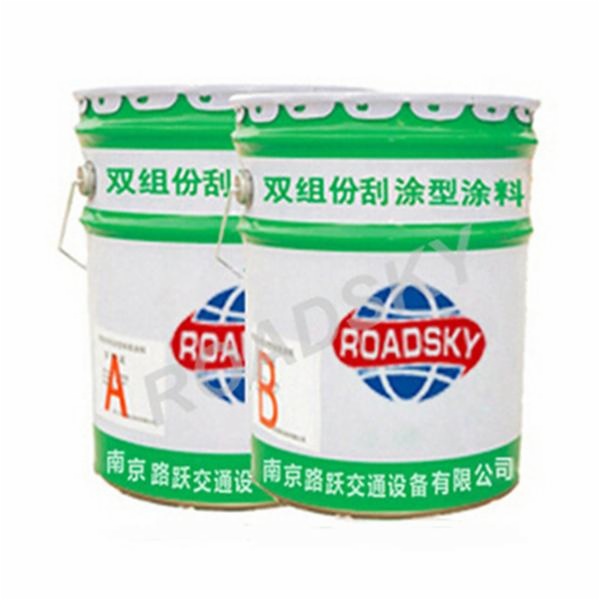

Spraying Paint:

Two-component Screed Road Marking Paint is a large molecular polymer of network structure, formed by low molecular acrylic polymer and evocating agent. The coating is full, hard, with good stain resistance, wear resistance and good reflective effect, etc. It is a new generation of road marking paint.
