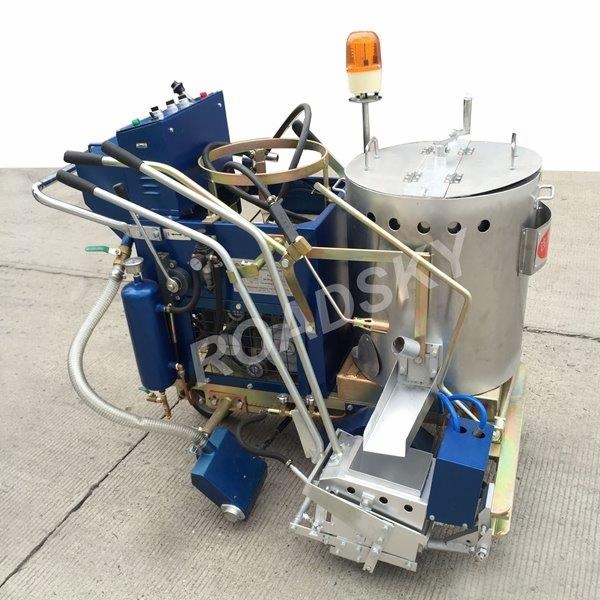

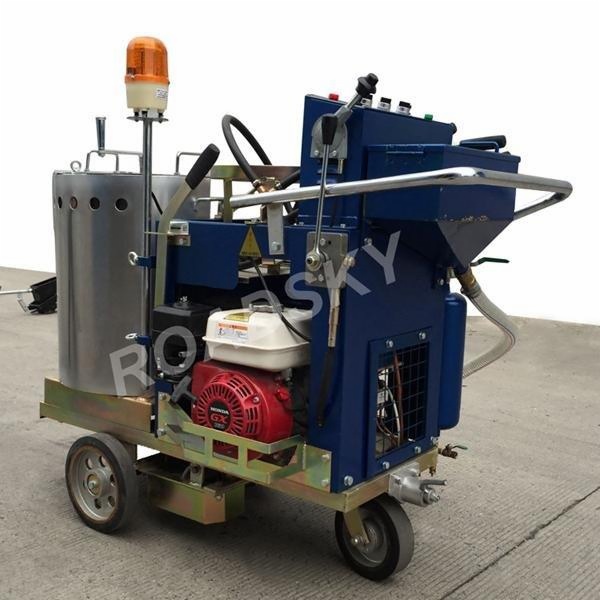

Roadsky RS-3 Series Self Propelled Convex Thermoplastic Road Line Marking Machine RS-3

Item Code:RS-3 Features:
  • Description


The equipment forms convex marking line through the micro-computer system, sensor system,air compressing system, driving system, etc. The regular trapezoid convex markings shape,convex height and convex space can meet different requirements of clients, and fully conform to the international vibrating and reflective standards, and with stronger deformation resistance,abrasion resistance and shock resistance, etc.

Adiabatic paint tank: The paint tank made of stainless steel or cold rolling oxidation resistant steel,which is equipped with erect type hand stirring device. The heating temperature can be freely controlled(0-300°)according to the different kinds of paint chosen by users.

Glass beads dispenser: The automatic definite quantity dispenser synchronous with the paint creeding system, ensures the dispenser more even and more economical. The structure of the glass bead dispenser’disposition is advanced, compact, easy operation, and flexible, when the spreading width is less than 200 mm(include 200 mm), it does not need to be replaced any part, the width may be regulated easily.

Marking thickness: The thickness of bottom line and the convex height can be freely adjusted through adjusting the control device of the ground knife.

Die: The structure plate is made of imported special steel with fire resistance (2000°C), oxidation resistance and deformation resistance, which has better stability after being punched. The plinth is made of special alloy steel and adopts the pneumatic screeding structure. The ground knife adopts imported hard tungsten knife-head.The nice manufacture techniques of bucket ensure better sensibility, abrasion resistance and firmness, and the convex shape more regular, the edge of bottom line more straight, the head more perfect. It has the features of easy operation, moving steadily, good effect, even marking, neat marking line, and clear corners.


Size (L×W×H): 1360×900×1100 mm
G.W.: 280 kg
Driving Speed: forward 0-6km/h back off 0-4km/h
Working voltage: 6V,12V,24V

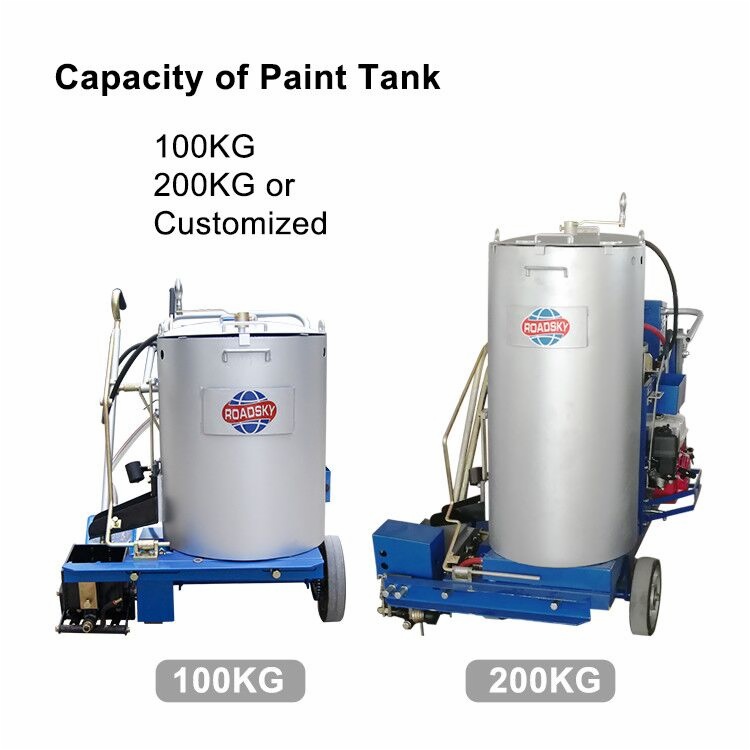

Cubage of paint tank:
100KG, 200KG or Customized
Cubage of glass beads bin: 10 kg
Marking width standard type: 150/200/300mm
Spreading width of glass bead dispenser: 100-200mm adjustable
Marking speed: >400 m/h
Thickness of Bottom Line: 1.5-2 mm
Convex Height: 3-8 mm

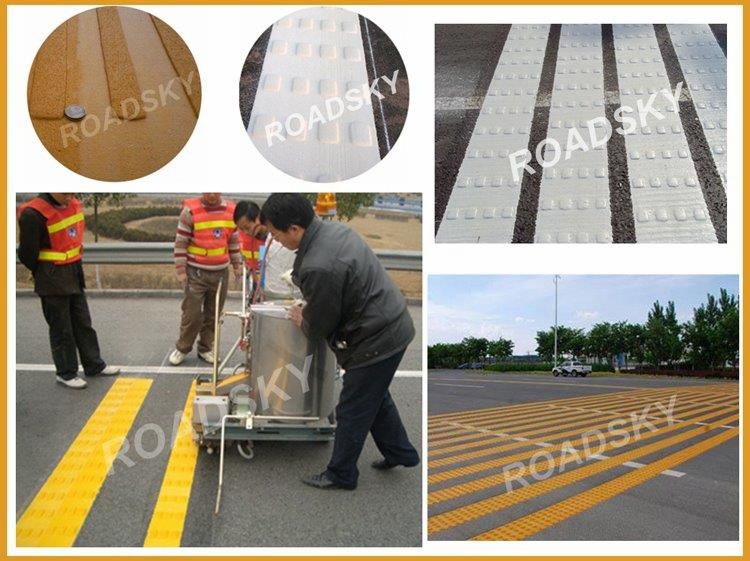

On-Site Working:
