RR Series Asphalt Road Roller RR-DD800 RR-600 RR-D600

  • Description

For the different road rolling requirements, we have three different types of road roller: RR-DD800, RR-600, RR-D600

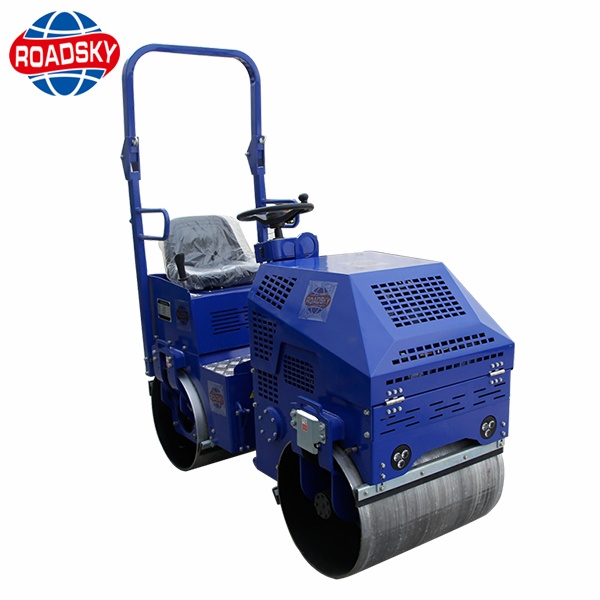

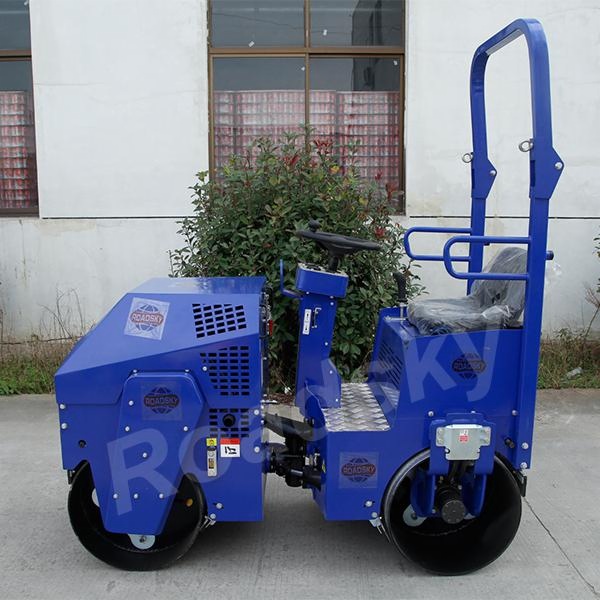

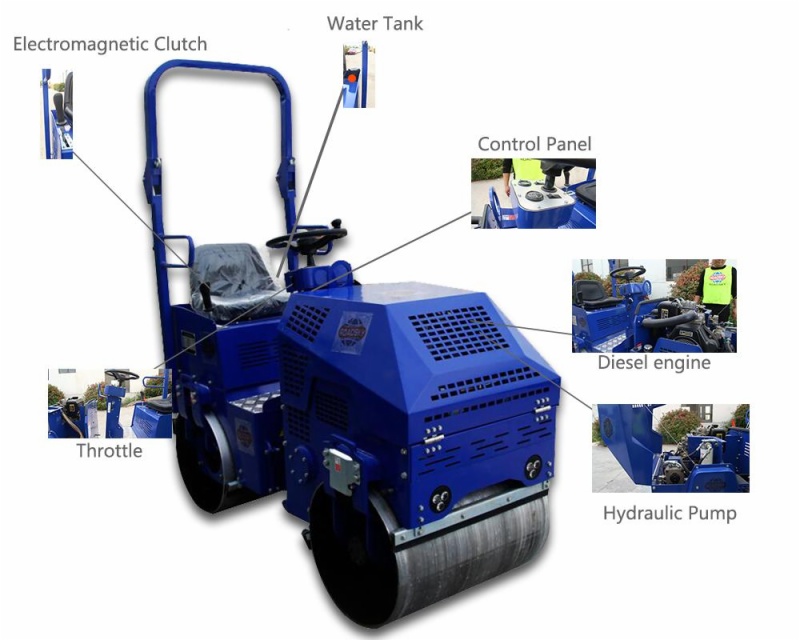

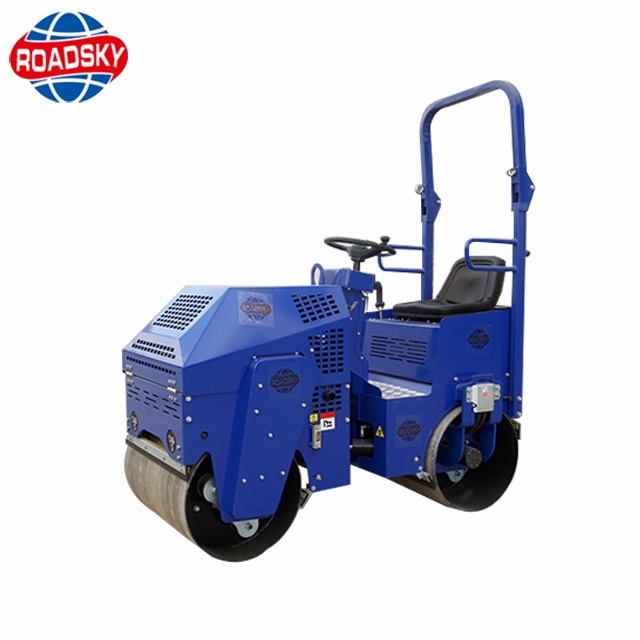

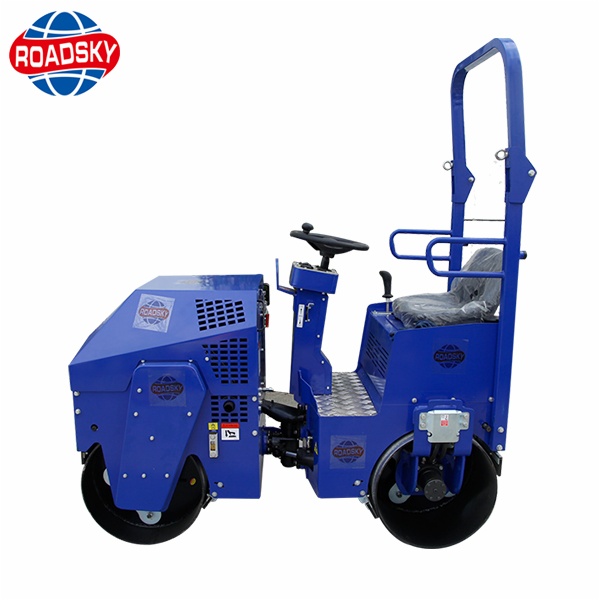

1. RR-DD800

Product Description:

RR-DD800 road roller machine is mainly used for foundation ditch, road, sports venues built compaction. It also can be used to compact the asphalt surface.



Specifications:

Walking Speed

0-12km/h

Grade ability

30-40%

Drive Type

Hydraulic Transmission

Vibration Control

Hydraulic Vibration

Static Linear Load

20/55N/cm

Nominal Amplitude

0.5mm

Exciting Force

2X30KN

Water Tank

60L

Hydraulic Oil Tank

19L

Engine Type

CF186

Steel Drum Diameter

540mm

Steel Drum Width

800mm

Power

13HP

Working Weight

2900kg

Starting Mode

Manual and Electric



Features:

1. It can be used for small area for its Small operating radius

2. Electric start

3. Famous brand NSK bearing

4. Rust resistance surface

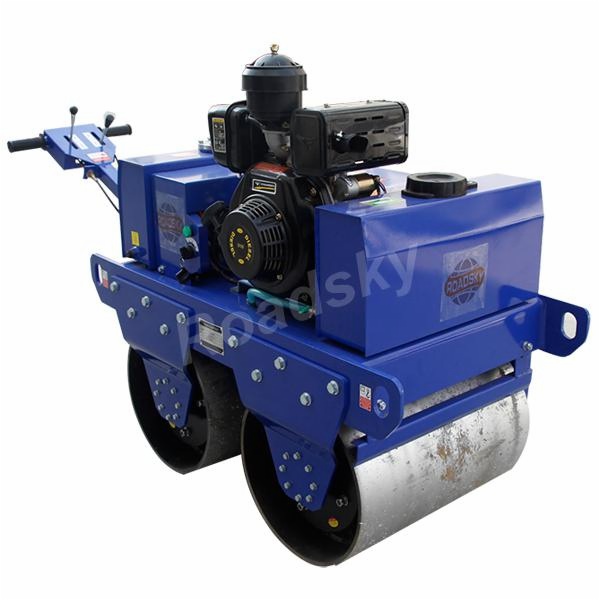

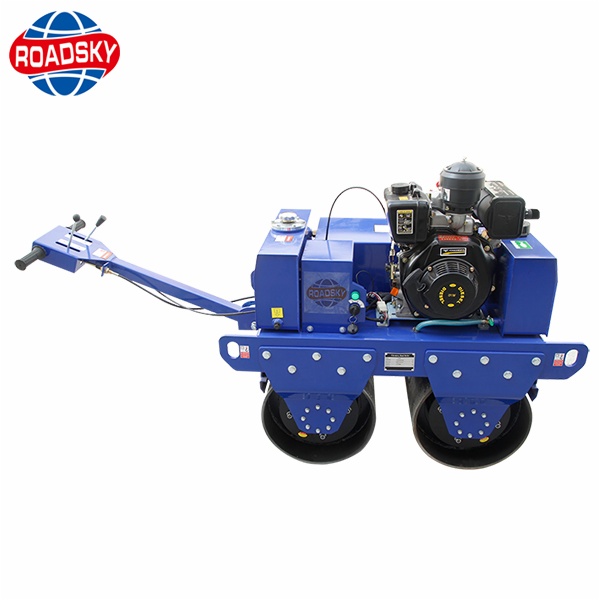

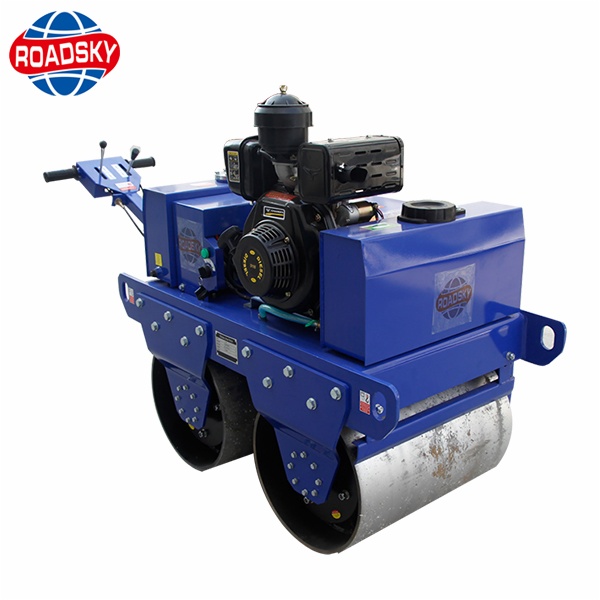

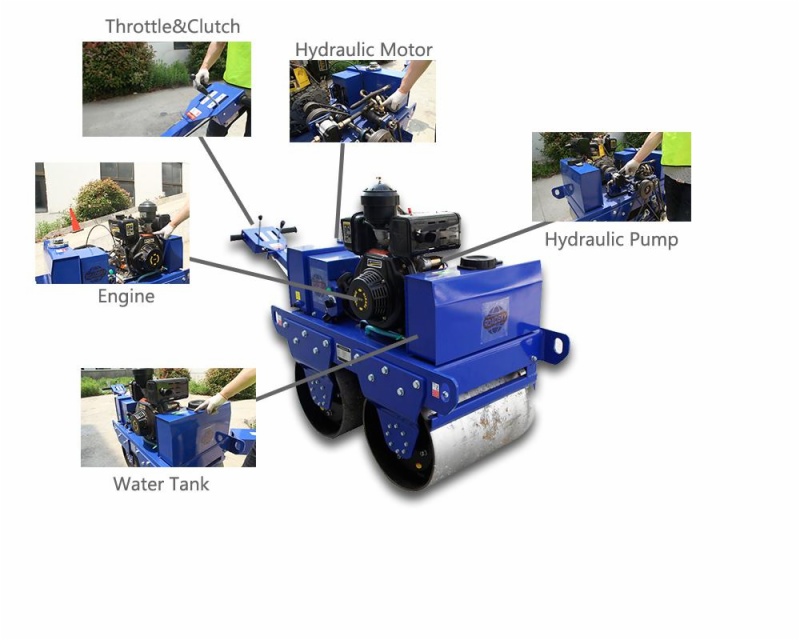

2.RR-D600

Product Description:

RR-D600 is a compact double drum soil compactor with small machines features and reliable performance. Mainly used on foundation ditch, road, sports venues built compaction, can also be used to compact asphalt surface.



Specifications:

Walking Speed

0-3km/h

Grade ability

30%

Driving Type

Hydraulic station

Vibration Control

Automatic Clutch

Static Linear Load

53N/cm

Nominal Amplitude

0.5mm

Exciting Force

20KN

Vibration Frequency

70HZ

Water Tank

20L

Hydraulic Oil Tank

21L

Engine Type

CF178F

Steel Drum Diameter

425mm

Steel Drum Width

600mm

Power

6HP

N.W

1000kg

Starting Mode

Manual and Electric



Features:

1. Adopts Fully Hydraulic Transmission: Hydraulic Steering and Hydraulic Turning, Mechanical Vibration;

2. Can adopts water-cooled/air-cooled diesel engine or HONDA gasoline engine, good heat dissipation.

3. 20KN Exciting force, good compaction. soil compactor vibratory roller.

4. The equipped with large capacity water tank, reduce the return water trouble, so that equipment can be continuous growth of working time.

5. Full closed hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is more convenient, convenient use, safety.

6. The side of a vehicle body design of a compact smooth walls, in the corners and edges of operation is very easy and convenient.

7. Operate radius small, can work in small area, suitable for groove backfill.

8. Use famous diesel engine, water-cooled diesel, high nd quality assurance, superior performance, easy to start.

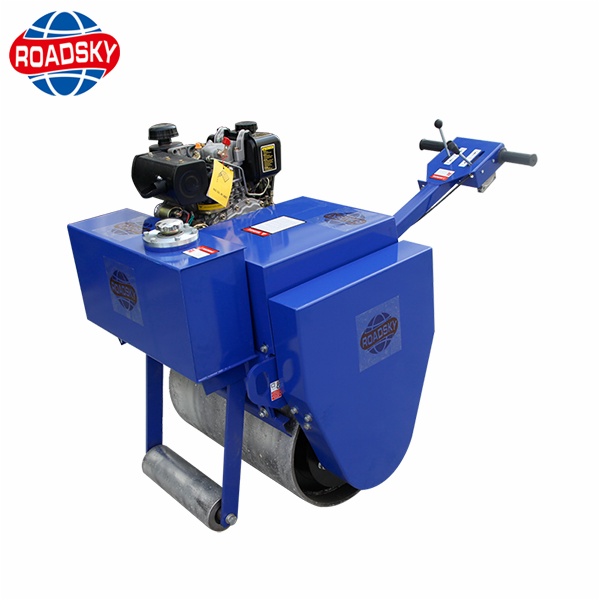

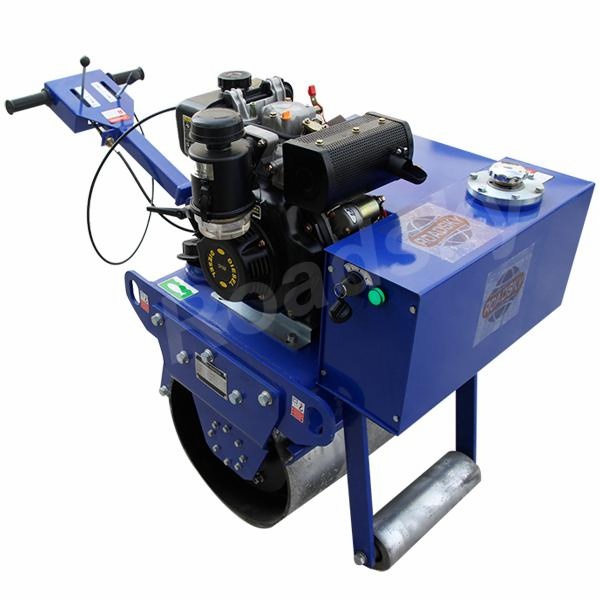

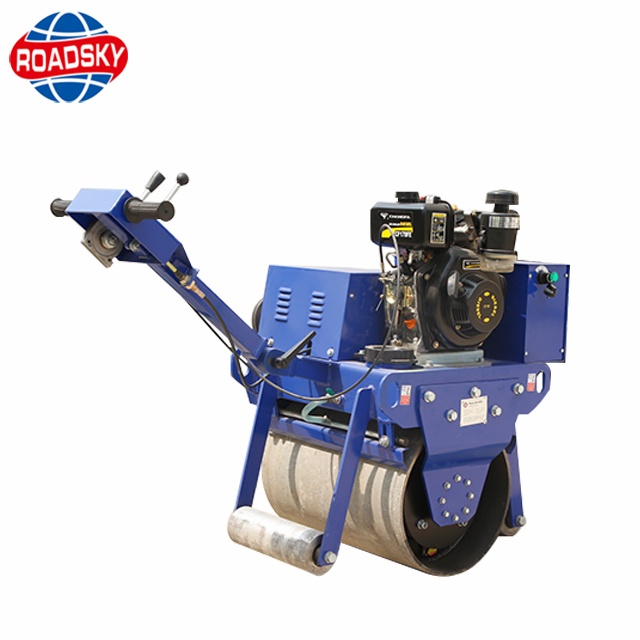

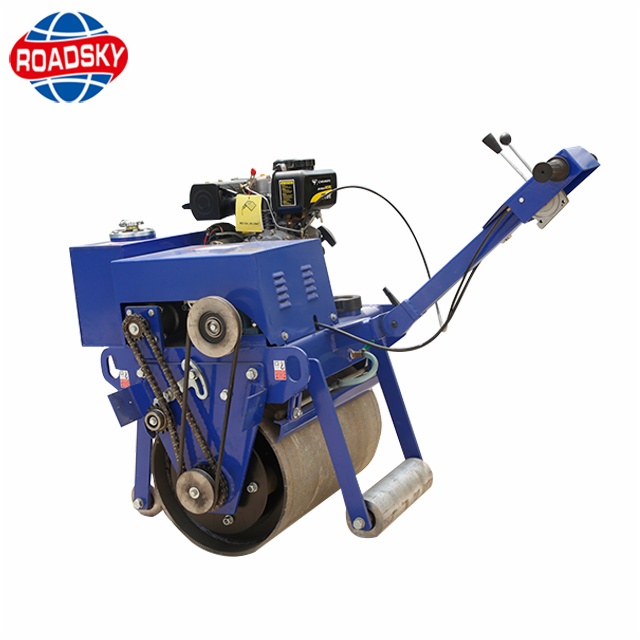

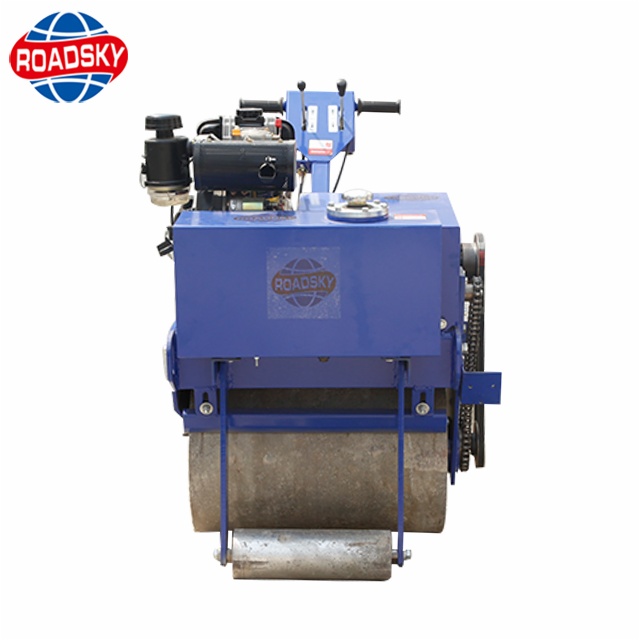

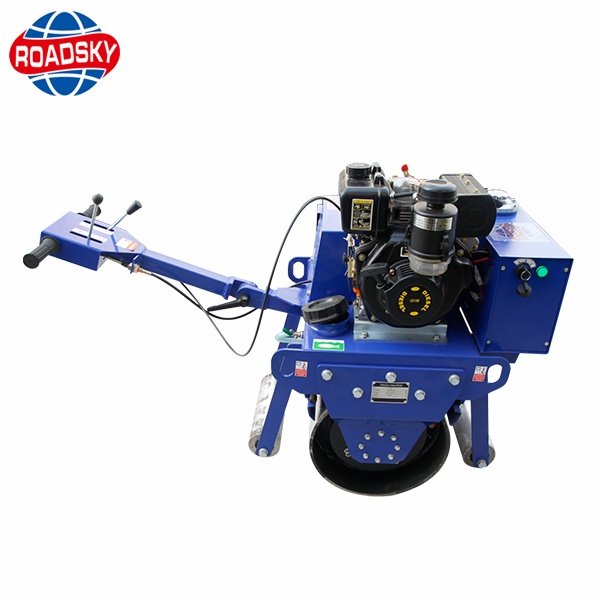

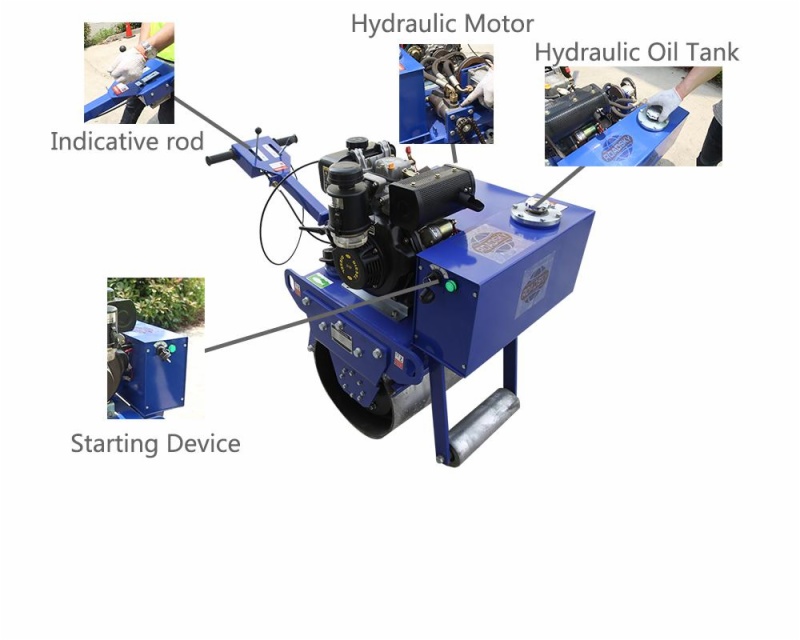

3. RR-600

Product Description:

RR-600 road roller is small-size vibratory roller, applied to mend and maintain various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn.

They are especially suitable for compaction of narrow areas as pipeline channel and drainage trench etc.



Specifications:

Walking Speed

0-3km/h

Grade ability

30%

Driving Type

Hydraulic station

Vibration Control

Automatic Clutch

Static Linear Load

40N/cm

Nominal Amplitude

0.6mm

Exciting Force

15KN

Vibration Frequency

70HZ

Water Tank

17L

Hydraulic Oil Tank

19L

Engine Type

CF170F

Steel Drum Diameter

425mm

Steel Drum Width

600mm

Power

5HP

N.W

325kg

Starting Mode

Manual and Electric



Features:

1. Fully hydraulic drive system consists of hydraulic pump and motors,provides infinitely variable speed for travel and vibration;

2. Dead man control and reversing protection for maximum operator safely;

3. Mechanical parking brake;

4. Self-cleaning scrapers prevent the buildup of dirt;

5. Electronic clutch;

Relate item

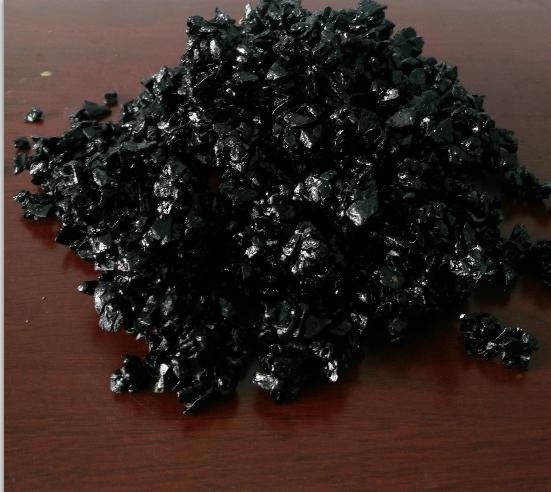

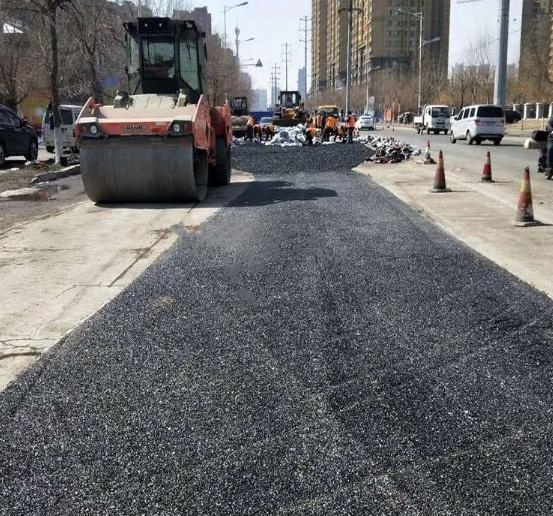

Cold feed
