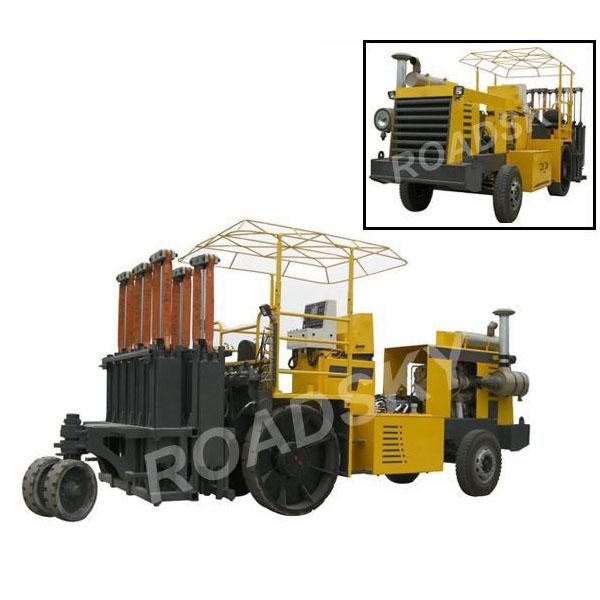

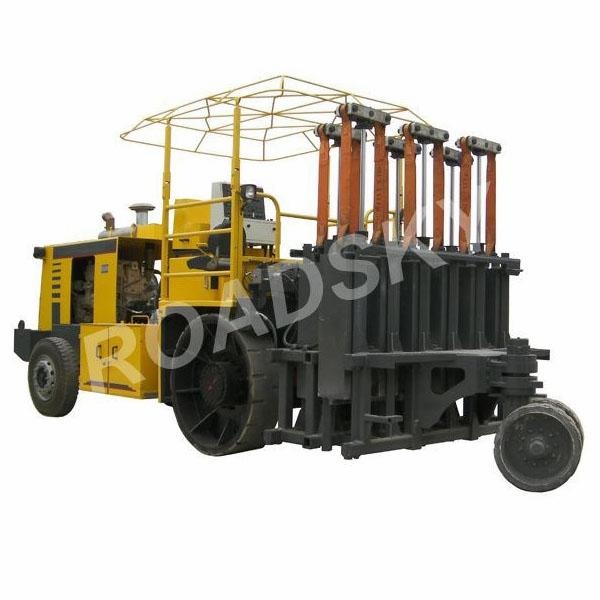

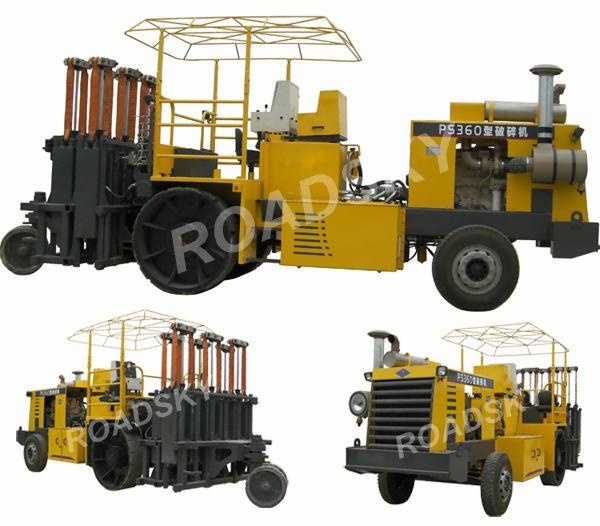

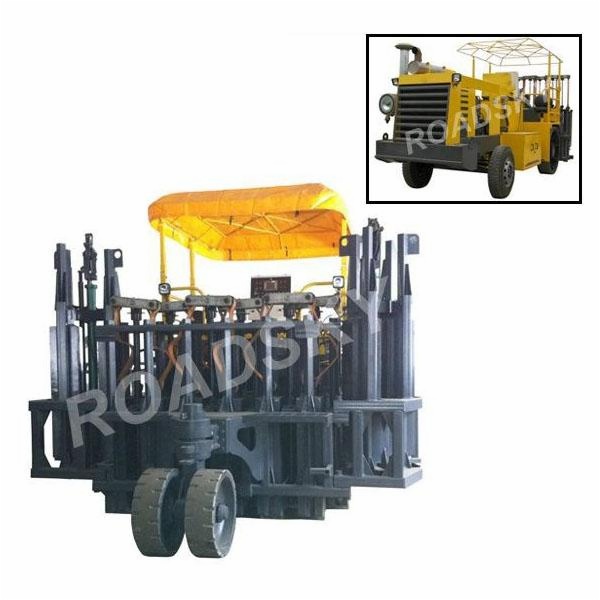

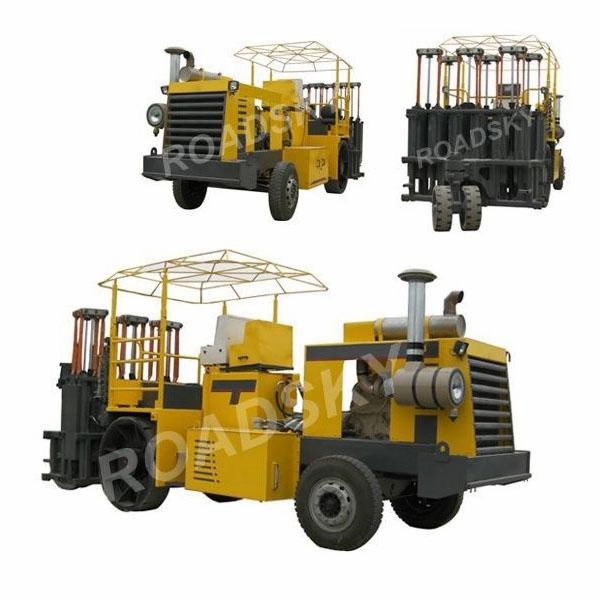

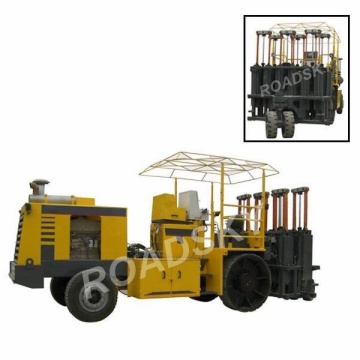

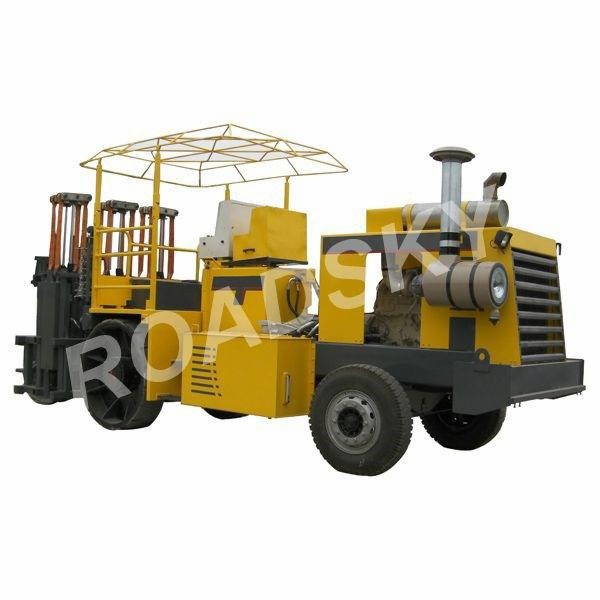

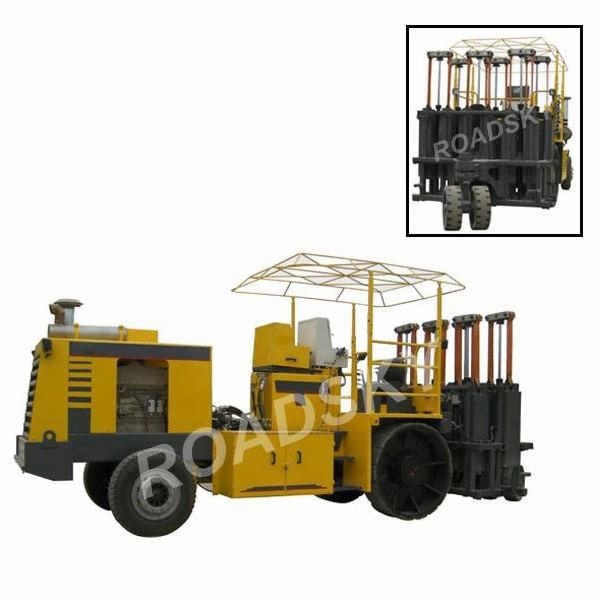

Roadsky Hydraulic Multiple Hammers Concrete Road Breaker

Enlarge

Item Code: Features:

Description

Hydraulic Multi-head Concrete Road Breaker

Functions:

1 PS series hydraulic multi-head concrete road breaker is a kind of special machine intended for rubblization technology of concrete pavement.

2 Through rolling, the top layer of fragments forms a flat surface and the lower layers of fragments forms an embedding and crowding structure. The road base can be effectively strengthened after paving new surface layer.

3 The MHB can operate close to the pavement centerline/edge (traffic is frequently diverted to the adjoining shoulder lane/shoulder during construction) and traffic barriers without unduly interfering with traffic.

4 By varying MHB operating characteristics, the MHB can produce a wide range of fracture patterns to accommodate individual project conditions.

5 On many projects, rubblization is started only a few hours prior to paving. More than one MHB can be utilized to achieve desired production rates and/or to rubblize more than a lane width.

Product specifications:

Name	Unit	PS245	PS360	PS400
Max. breaking width	mm	2500	4000	4000
Min. breaking width	mm	800	800	800
Affected depth by breaking	mm	270	300	300
Breaking frequency	Times/min.	25-30	30-35	30-35
Lifting system quantity	pc	4	8	8
Number of main hammers	pc	8	12	12
Number of side hammers	pc	/	4	4
Hammer Weight	kg	800	800	1000
Travel speed	Km/h	0-8	0-8	0-8
Working speed	Km/h	0-2	0-2	0-2
Max. Drop height	mm	1500 (adjustable)	1500 (adjustable)	1500 (adjustable)
Wheelbase	mm	3500	4000	4000
Rated power of engine	KW	140	268	298
Rated speed of engine	r.p.m.	2200	2100	2100
Total Weight	kg	26000	30000	32000
Size (LWH)	mm	847027103620	847042503720	847042503720
Working efficiency	m2/h	2000	4000	4000
Broken Rate		More than 85%	More than 85%	More than 85%
Fuel Tank Volume	L	450	500	500

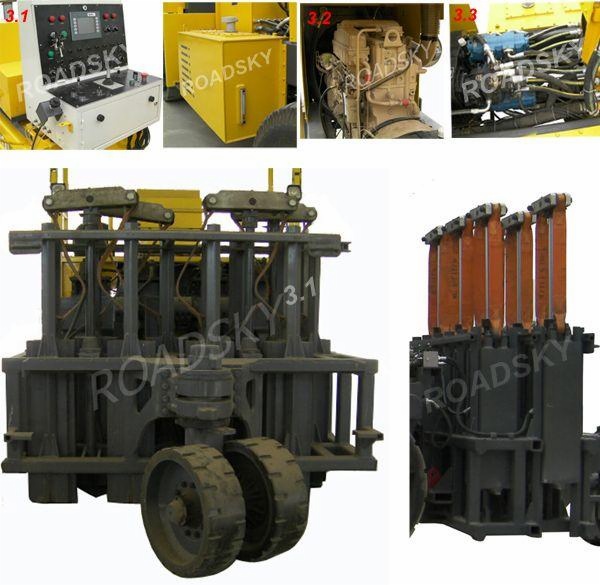

Details:

3.1 GPS management system provides a platform on which remote monitoring and service can be realized between the manufacturer and the user, with intelligent control system, self-diagnosis can be realized for malfunction.

3.2 Cummins generator which is manufactured by Sino-US Joint Venture provides all the needed power for the system. So it is of the advantages of advanced performance, low maintenance rate and long durability.

3.3 Adopt close type hydraulic transmission system for the running. With stepless speed change, running steadily and working reliably.

3.4 Adopt open type hydraulic transmission system for working devices. Manual and automatic control can be realized through electrical operation.

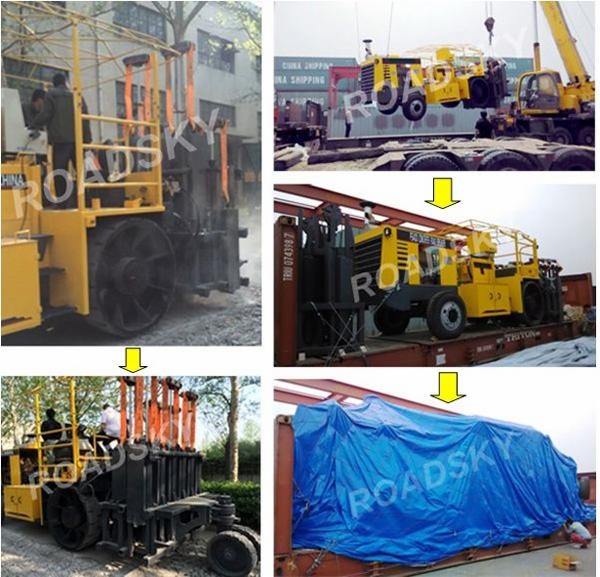

Working at site & Shipping:

Export and sea-worthy is standard special packing for hydraulic multi-head concrete road breaker
